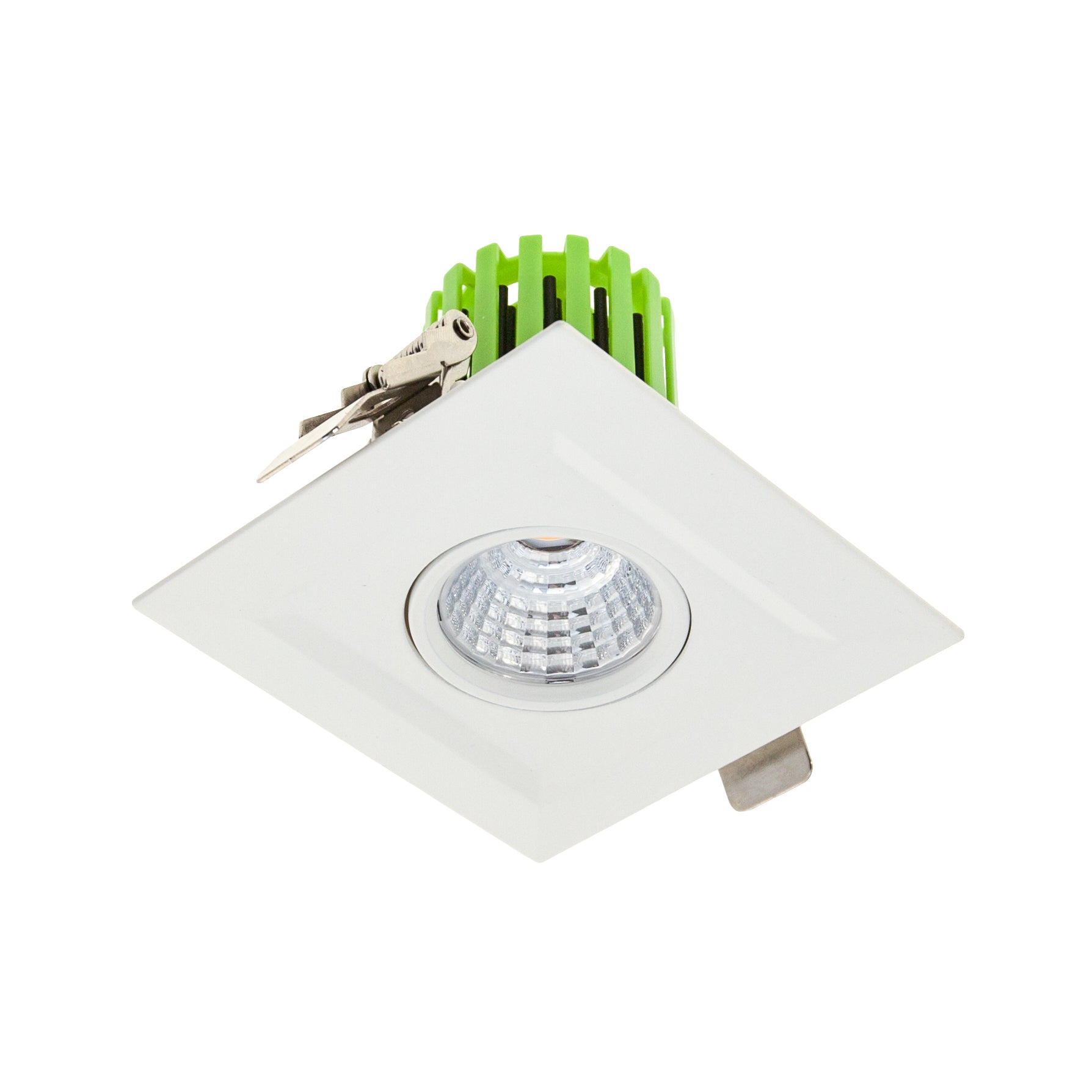

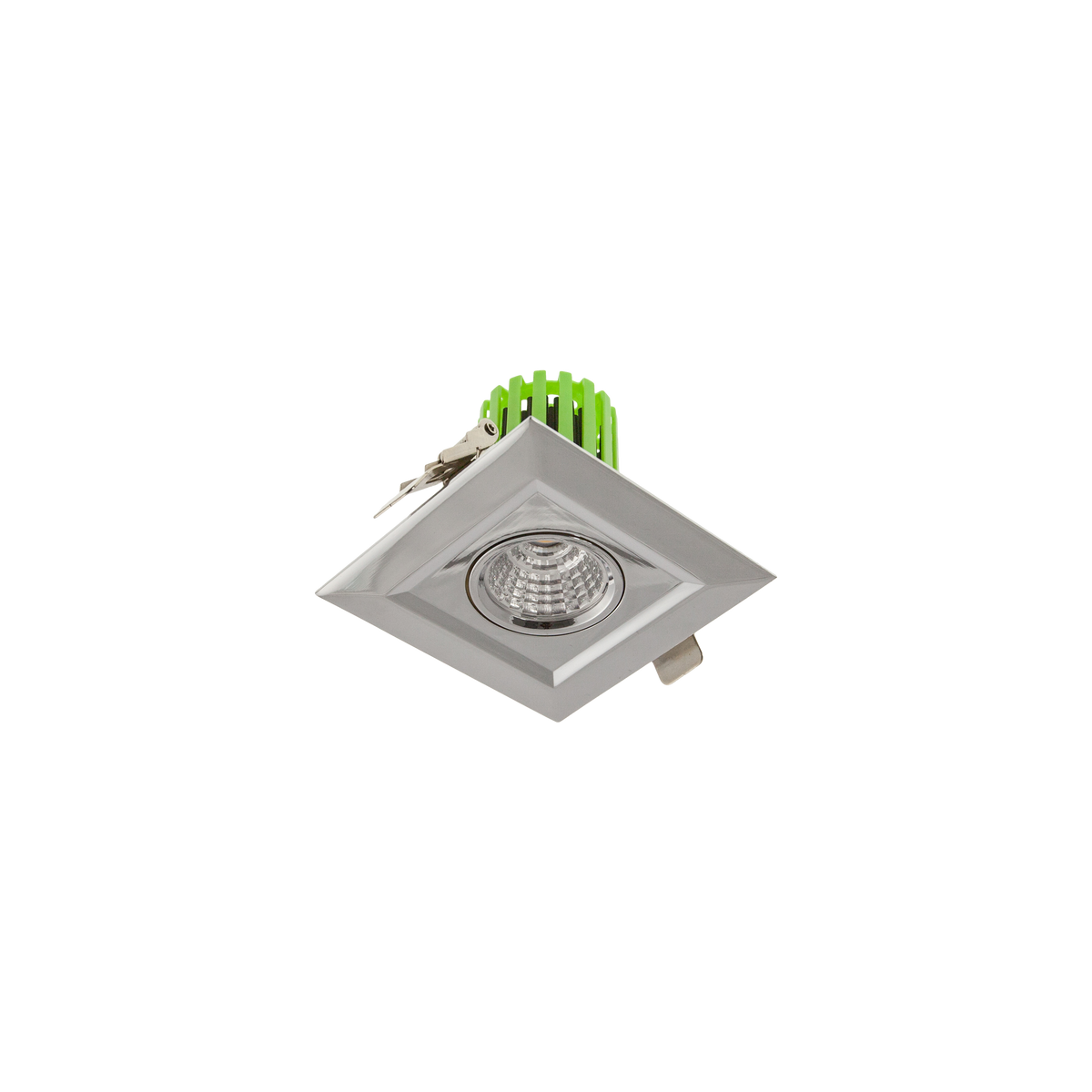

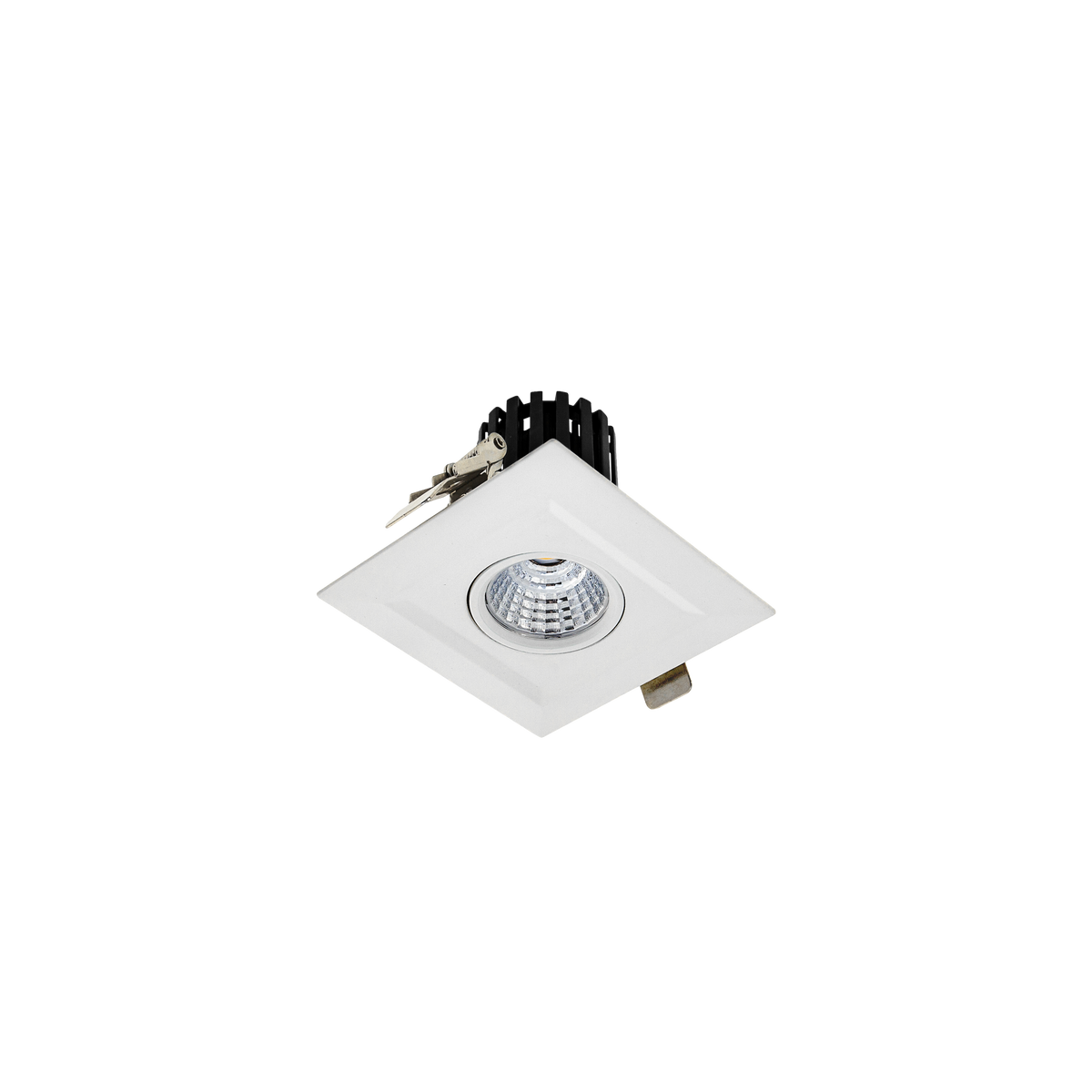

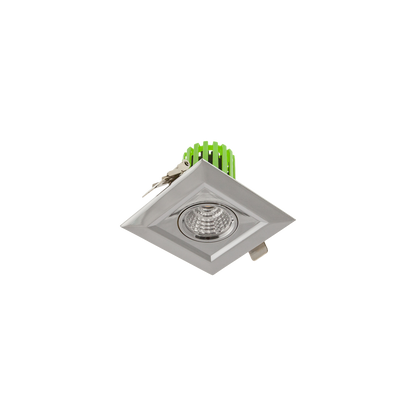

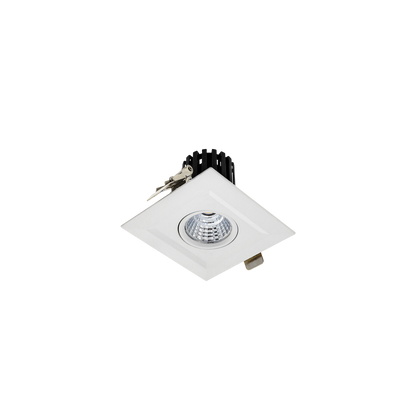

Smart Tilt Downlight Kit R738 by Halcyon
Smart Tilt Downlight Kit R738 by Halcyon
- 82 mm cut-out
- IP44
In stock, dispatched within 5 to 10 working days
Free delivery on orders over $499 to most NZ addresses. Delivery details
Couldn't load pickup availability
- Authorised Halcyon Lighting stockist
- NZ family business, delivering nationwide

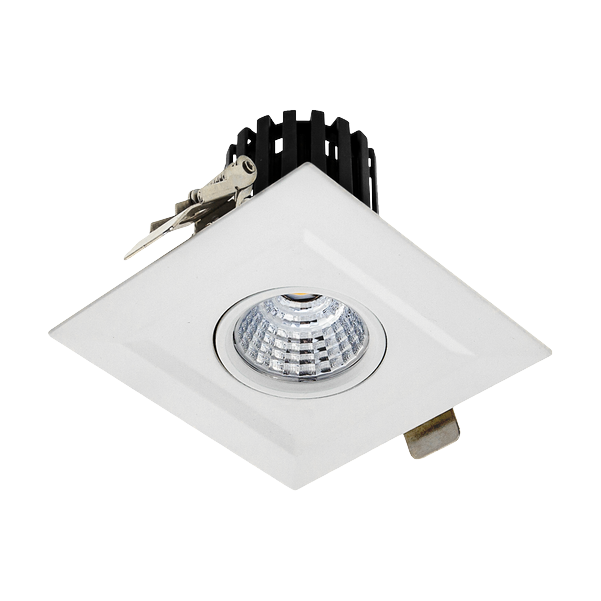

Smart Tilt Downlight Kit R738 by HalcyonWhite
$94Price match promise
Size and placement
Get the height right
Typical mounting heights. Your electrician will confirm the final position.
-
Spacing
Space downlights about 1.2 to 1.5 m apart, and about 600 mm in from the walls.
Specifications
| Width | 105 mm |
|---|---|
| Length | 105 mm |
| Height | 80 mm |
| Ceiling cut-out | 82 mm |
| Rating | IP44 |
Overview
This smart tilt downlight kit is a high-quality lighting solution, featuring a 12W power consumption, 3000K warm white colour temperature, and 880lm lumens output. It has a 60° beam angle, and a tilt angle of 30°, making it perfect for various lighting needs. The kit includes a dimmable driver and has a 5-year warranty.
| Watts | 12W |
| Cut Out | 82mm |
| Width | 105mm |
| Length | 105mm |
| Height | 80mm |
| Colour Temp | 3000K Warm White |
| Lumens | 880lm |
| CRI | 90 |
| Lifespan | <50,000hrs |
| Beam Angle | 60° |
| Binning | SDCM 3 |
| Tilt Angle | 30° |
| Input | 240V |
| Finish | White, Chrome |
| Material | Aluminium with Patented Heat Shield & Gasket |
| Ingress Protection | IP44 |
| Classification | IC |
| Driver Included / Incorporated | Driver Included |
| Dimming / Control | Dimmable |
| Driver Output Current | 260mA |
| TLAs | "Flicker-free", PstLM =1.0; SVM =0.4 |
Delivery and installation
In-stock showroom items are usually dispatched the next working day. Warehouse items are dispatched within 5 to 10 working days. Delivery is free on orders over $499 to most New Zealand addresses; oversized items are charged at our oversized rate. Shipping policy
Hardwired lights must be installed by a licensed electrician.
