• Exterior Design Standard Downlight Kit

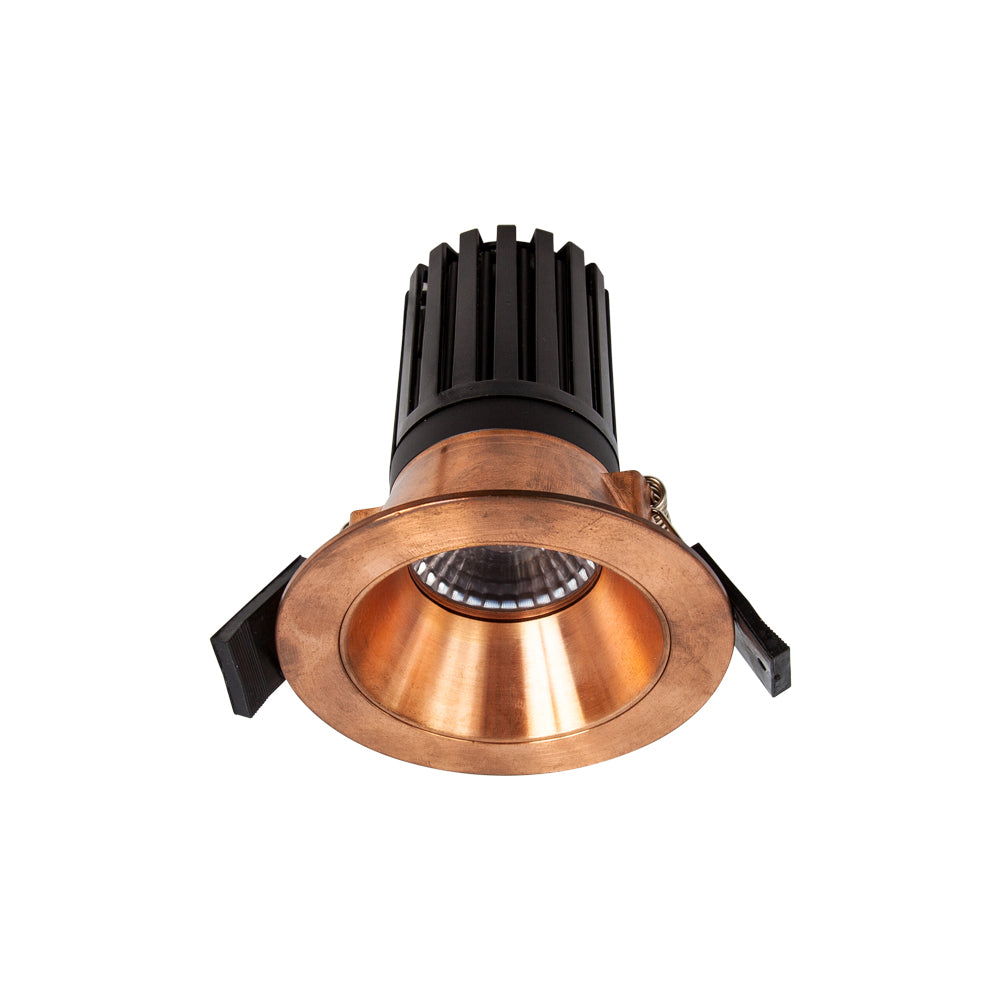

  • Exterior Design Standard Downlight Kit by Halcyon in Copper
  • Exterior Design Standard Downlight Kit

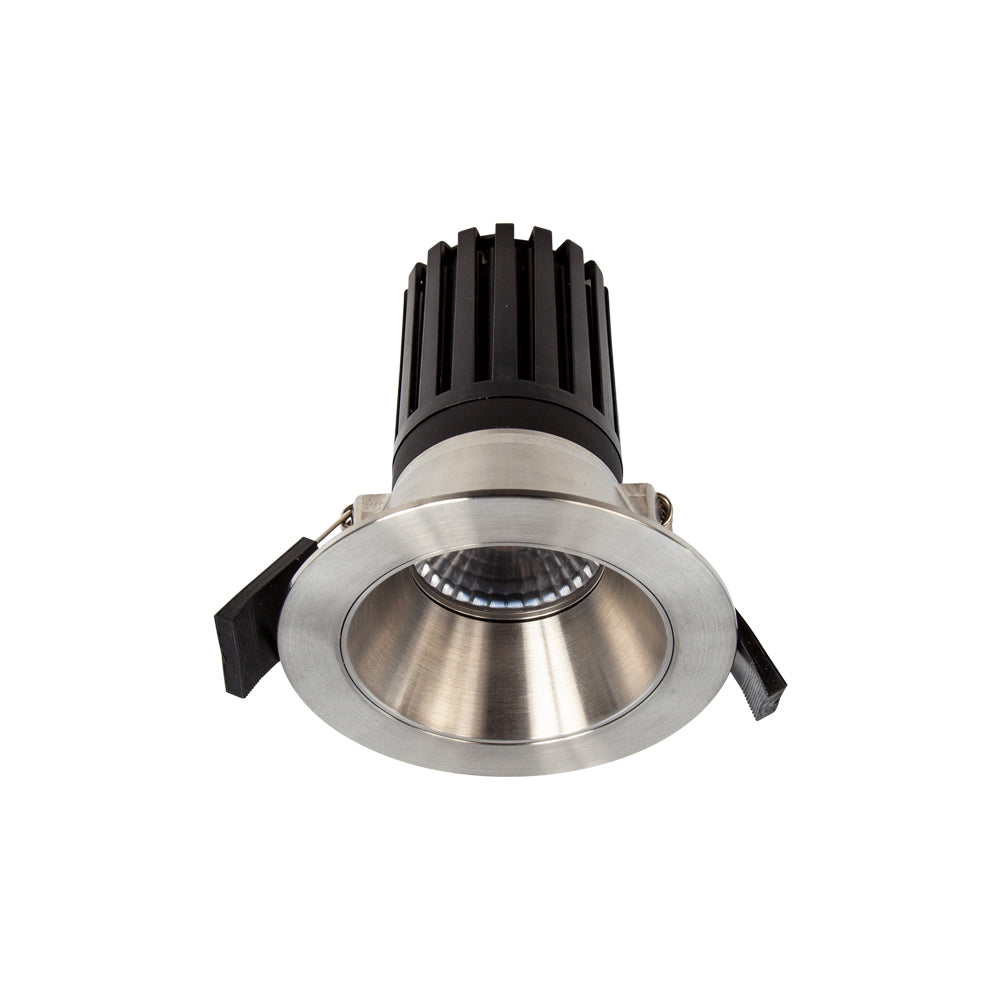

  • Exterior Design Standard Downlight Kit by Halcyon in 316 Stainless Steel
1 4

Halcyon Lighting

Exterior Design Standard Downlight Kit by Halcyon

Exterior Design Standard Downlight Kit by Halcyon

$156.00
$156.00
Sale Sold out
Shipping calculated at checkout.
Finish: Black
  • 72–82 mm cut-out
  • IP65
  • IC-4
  • Dimmable

In stock, dispatched within 5 to 10 working days

Free delivery on orders over $499 to most NZ addresses. Delivery details

  • Authorised Halcyon Lighting stockist
  • NZ family business, delivering nationwide
Exterior Design Standard Downlight Kit by HalcyonBlack $156Price match promise
View full details

The details

A closer look

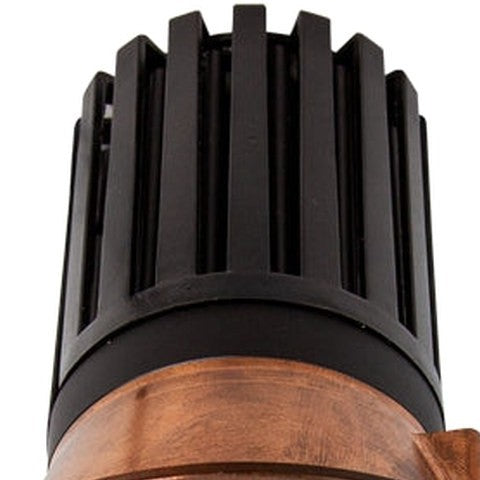

  • Finned heat sink Finned heat sink

    Sits above the ceiling

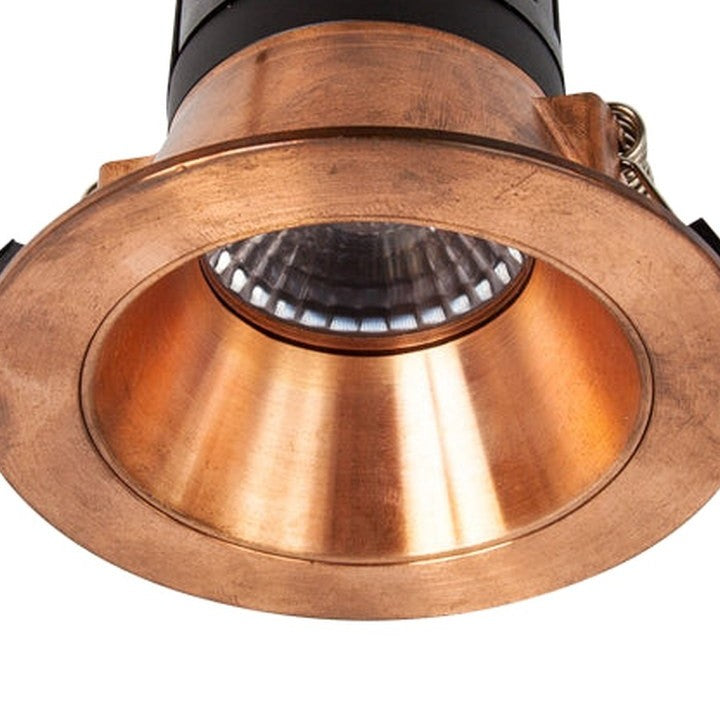

  • Copper Copper

    One of four finishes

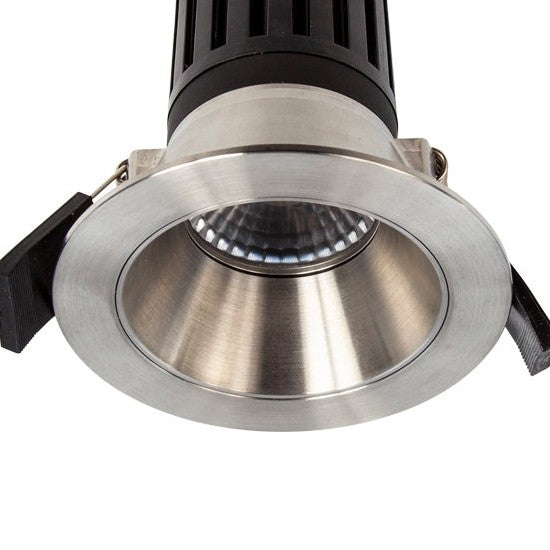

  • Brushed 316 stainless Brushed 316 stainless

    Also in black or white

Size and placement

Get the height right

Typical mounting heights. Your electrician will confirm the final position.

  • Spacing

    Space downlights about 1.2 to 1.5 m apart, and about 600 mm in from the walls.

Specifications
Diameter 93 mm
Height 104 mm
Cut-out 72–82 mm
Lamp Integrated LED, 9.5 W, 770 lm
Colour temperature 3000K (warm white)
CRI 90
Beam angle 50°
Lifespan 60,000 hours (L80 B30)
Dimming Dimmable, driver included
Insulation IC-F / IC-4
Finishes Copper, black, brushed 316 stainless steel or white
Rating IP65 (front face)
Electrical Class II
Overview

This exterior design standard downlight kit is designed for outdoor use, with a warm white colour temperature of 3000K and a high lumen output of 770lm. The kit is IP65 rated, making it suitable for installation in outdoor areas, and is IC-F and IC-4 classified. The downlight kit is also dimmable, with a driver output current of 230mA.

Watts 9.5W
Cut Out 72-82mm (suitable for retrofit applications)
Diameter 93mm
Height 104mm
Colour Temp 3000K Warm White
Lumens 770lm
CRI 90
Lifespan 60,000hrs (L80 B30)
Beam Angle 50°
Binning SDCM 3
Finish Copper, Black, Brushed 316 Stainless Steel, White
Ingress Protection IP65 (front face only)
Classification IC-F / IC-4
Driver Included / Incorporated Driver Included
Dimming / Control Dimmable
Driver Output Current 230mA
Electrical Class Class II
Delivery and installation

In-stock showroom items are usually dispatched the next working day. Warehouse items are dispatched within 5 to 10 working days. Delivery is free on orders over $499 to most New Zealand addresses; oversized items are charged at our oversized rate. Shipping policy

Hardwired lights must be installed by a licensed electrician.

Uses

Where it works best

  1. 01
    Eaves and soffits

    It is IP65 rated at the front face, for covered outdoor ceilings.

  2. 02
    Decks and entrances

    770 lumens of warm white light, and it is dimmable.

  3. 03
    Insulated ceilings

    It is IC-F / IC-4 classified.
