• Design Standard Tilt Downlight Kit by Halcyon in White
  • Design Standard Tilt Downlight Kit
1 2

Halcyon Lighting

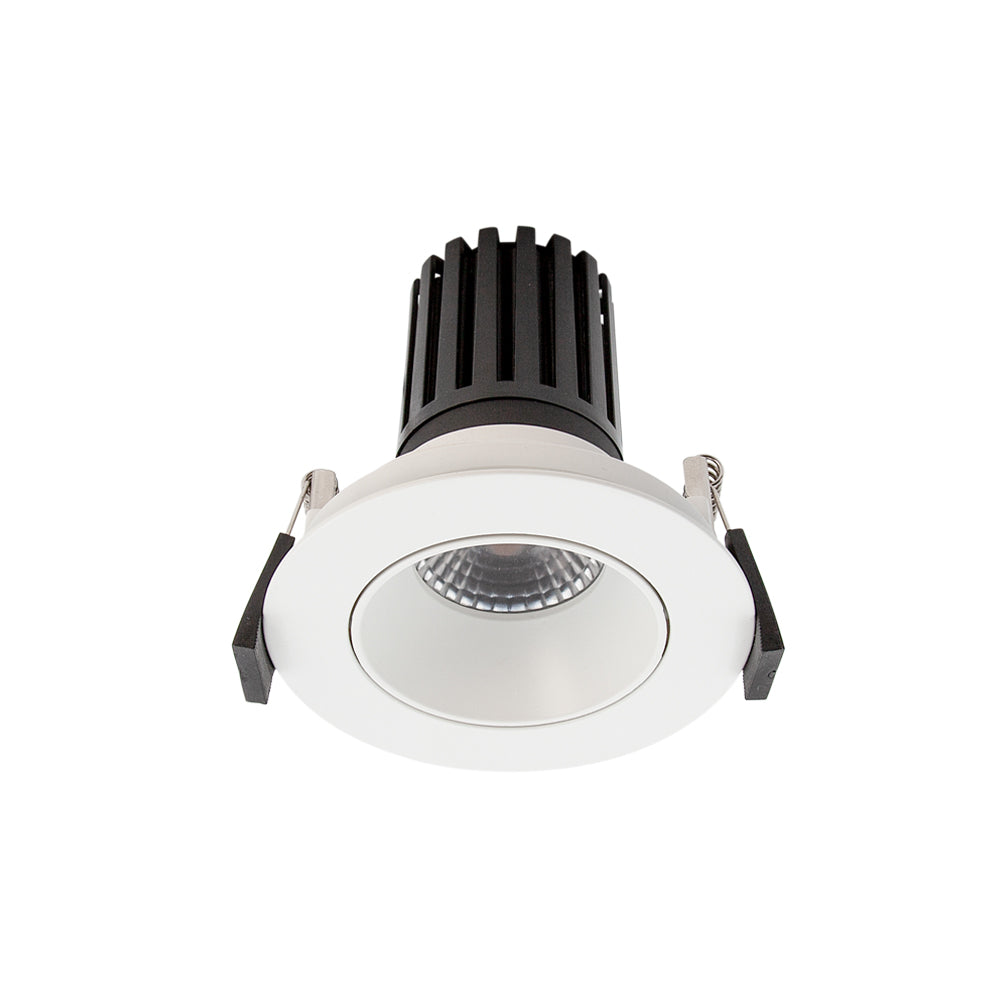

Design Standard Tilt Downlight Kit by Halcyon

Design Standard Tilt Downlight Kit by Halcyon

$81.00
$81.00
Sale Sold out
Shipping calculated at checkout.
Finish: White
  • 85–92 mm cut-out
  • Tilts 32°
  • IP54
  • Dimmable

In stock, dispatched within 5 to 10 working days

Free delivery on orders over $499 to most NZ addresses. Delivery details

  • Authorised Halcyon Lighting stockist
  • NZ family business, delivering nationwide
Design Standard Tilt Downlight Kit by HalcyonWhite $81Price match promise
View full details

The details

A closer look

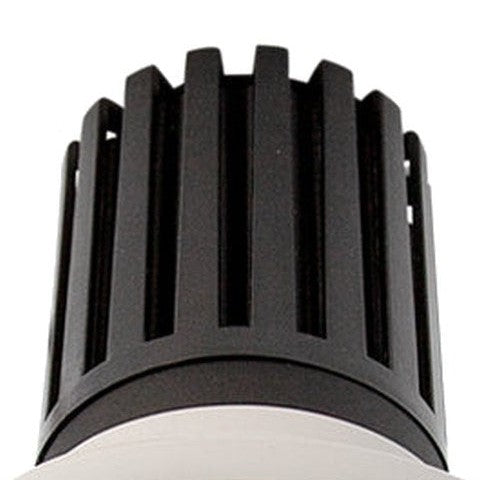

  • Finned heat sink Finned heat sink

    Sits above the ceiling

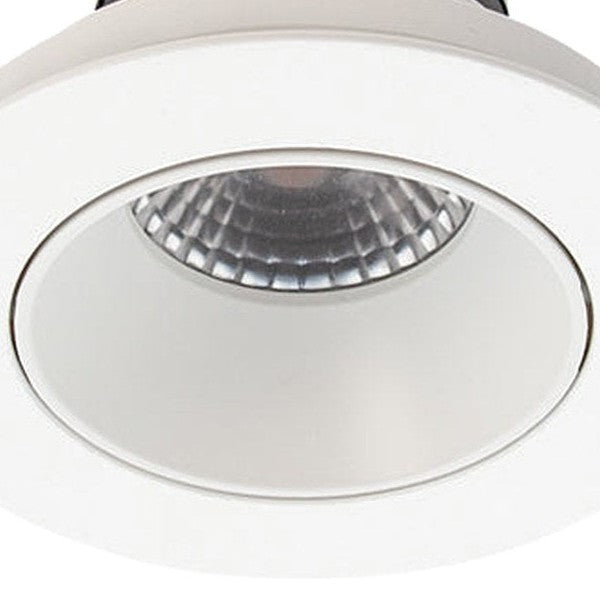

  • Tilting head Tilting head

    Angles up to 32°

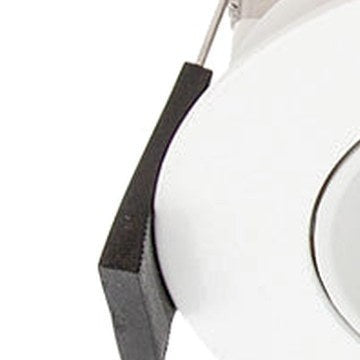

  • Spring clips Spring clips

    For an 85 to 92 mm cut-out

Size and placement

Get the height right

Typical mounting heights. Your electrician will confirm the final position.

  • Spacing

    Space downlights about 1.2 to 1.5 m apart, and about 600 mm in from the walls.

Specifications
Diameter 100 mm
Height 101 mm
Cut-out 85–92 mm
Lamp Integrated LED, 9.5 W, 860 lm
Colour temperature 3000K (warm white)
CRI 90
Beam angle 50°
Tilt Up to 32°
Lifespan 60,000 hours (L80)
Dimming Dimmable and flicker-free, driver included
Insulation IC-F / IC-4
Material Aluminium and polycarbonate
Finish White
Rating IP54
Electrical Class II
Overview
This downlight kit is designed to provide warm white lighting with a colour temperature of 3000K and a lifespan of over 60,000 hours. It features a dimmable driver and a tilt angle of 32 degrees, making it ideal for various lighting applications. The kit is made from high-quality materials, including aluminium and PC, and has an IP54 ingress protection rating.

Watts 9.5W
Cut Out 85-92mm
Diameter 100mm
Height 101mm
Colour Temp 3000K Warm White
Lumens 860lm
CRI 90
Lifespan <60,000hrs (L80)
Beam Angle 50°
Binning SDCM 3
Tilt Angle 32°
Finish White
Material Aluminium, PC
Ingress Protection IP54
Classification IC-F / IC-4
Driver Included / Incorporated Driver Included
Dimming / Control Dimmable
Driver Output Current 230mA
Electrical Class Class II
TLAs Flicker-free, PstLM =1.0; SVM =0.4
Delivery and installation

In-stock showroom items are usually dispatched the next working day. Warehouse items are dispatched within 5 to 10 working days. Delivery is free on orders over $499 to most New Zealand addresses; oversized items are charged at our oversized rate. Shipping policy

Hardwired lights must be installed by a licensed electrician.

Uses

Where it works best

  1. 01
    Art and feature walls

    Tilt it up to 32° to light a wall or artwork.

  2. 02
    Raked ceilings

    The tilt lets you aim the light from a sloped ceiling.

  3. 03
    Kitchens

    860 lumens of warm white light, with a CRI of 90.

Good to know

Questions customers ask

Quick answers before you buy.

Will you match a lower price?

Yes. If another authorised New Zealand retailer advertises the same product, in the same finish, for less, send us the link before you order and we will match it. The details are on our price match promise page.

Halcyon Lighting

About the brand

Halcyon Lighting

Halcyon is a New Zealand lighting company known for practical, well-engineered LED downlights. We stock Halcyon downlight kits, including tilting and smart options, surface-mounted downlights and Halcyon wall and exterior lights. See all downlights, or pair Halcyon downlights with feature pendants and wall lights.

Shop all Halcyon Lighting →
