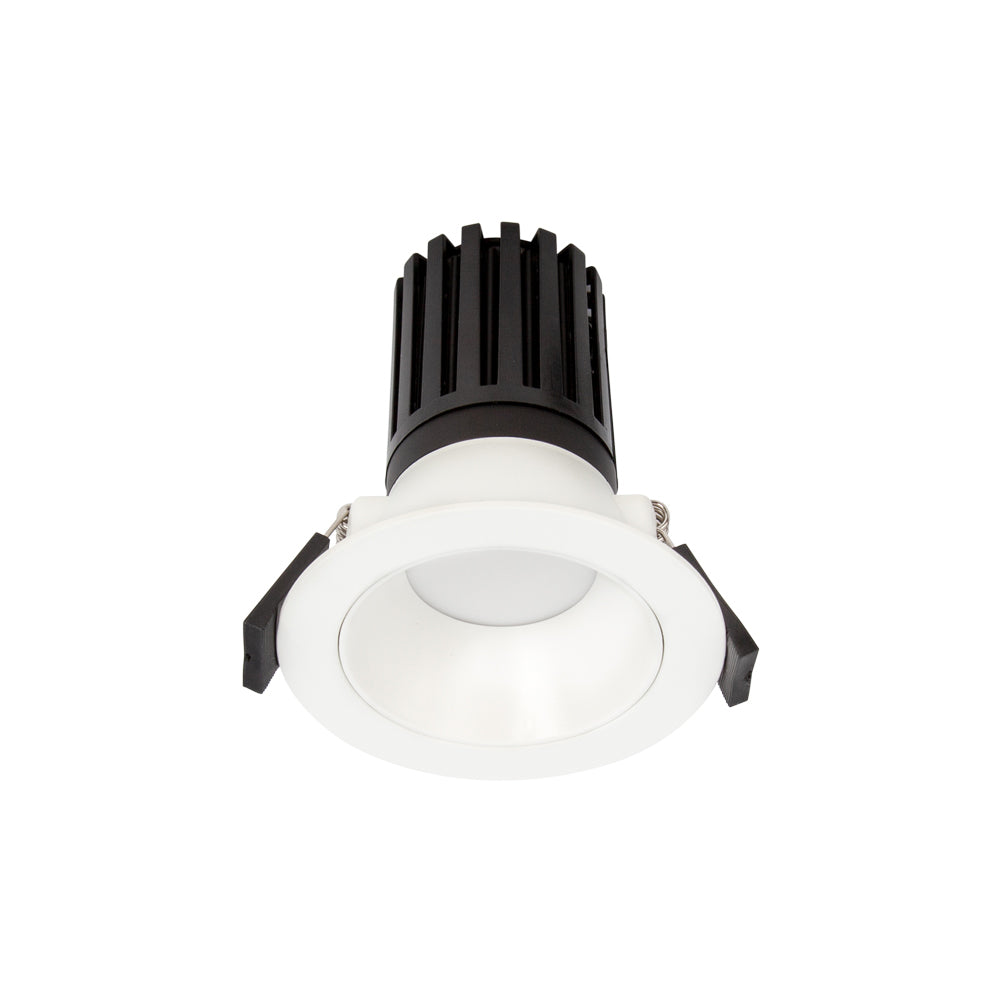

Design Standard Small Downlight Kit - Wide Beam by Halcyon
Design Standard Small Downlight Kit - Wide Beam by Halcyon
- IP54
In stock, dispatched within 5 to 10 working days
Free delivery on orders over $499 to most NZ addresses. Delivery details
Couldn't load pickup availability
- Authorised Halcyon Lighting stockist
- NZ family business, delivering nationwide
Design Standard Small Downlight Kit - Wide Beam by HalcyonBlack
$63Price match promise
Size and placement
Get the height right
Typical mounting heights. Your electrician will confirm the final position.
-
Spacing
Space downlights about 1.2 to 1.5 m apart, and about 600 mm in from the walls.
Specifications
| Diameter | 93 mm |
|---|---|
| Height | 104 mm |
| Rating | IP54 |
Overview
This downlight kit features a wide beam and is perfect for retrofit applications. It has a wattage of 9.5W, a cut out of 72-82mm, and a diameter of 93mm. The kit comes with a dimmable driver and has a 5-year warranty.
| Watts | 9.5W |
| Cut Out | 72-82mm |
| Diameter | 93mm |
| Height | 104mm |
| Colour Temp | 3000K Warm White |
| Lumens | 900lm |
| CRI | 90 |
| Lifespan | 60,000hrs (L80 B10) |
| Beam Angle | 90° |
| Binning | SDCM 3 |
| Finish | White Black |
| Material | Aluminium, PC |
| Ingress Protection | IP54 |
| Classification | IC-F / IC-4 |
| Driver Included / Incorporated | Driver Included |
| Dimming / Control | Dimmable |
| Driver Output Current | 230mA |
| Electrical Class | Class II |
| TLAs | "Flicker-free", PstLM =1.0; SVM =0.4 |
| Features | UID Under Insulation Dimmable Driver Included pre-wired |
| Warranty | 5 Year Warranty |
Delivery and installation
In-stock showroom items are usually dispatched the next working day. Warehouse items are dispatched within 5 to 10 working days. Delivery is free on orders over $499 to most New Zealand addresses; oversized items are charged at our oversized rate. Shipping policy
Hardwired lights must be installed by a licensed electrician.
