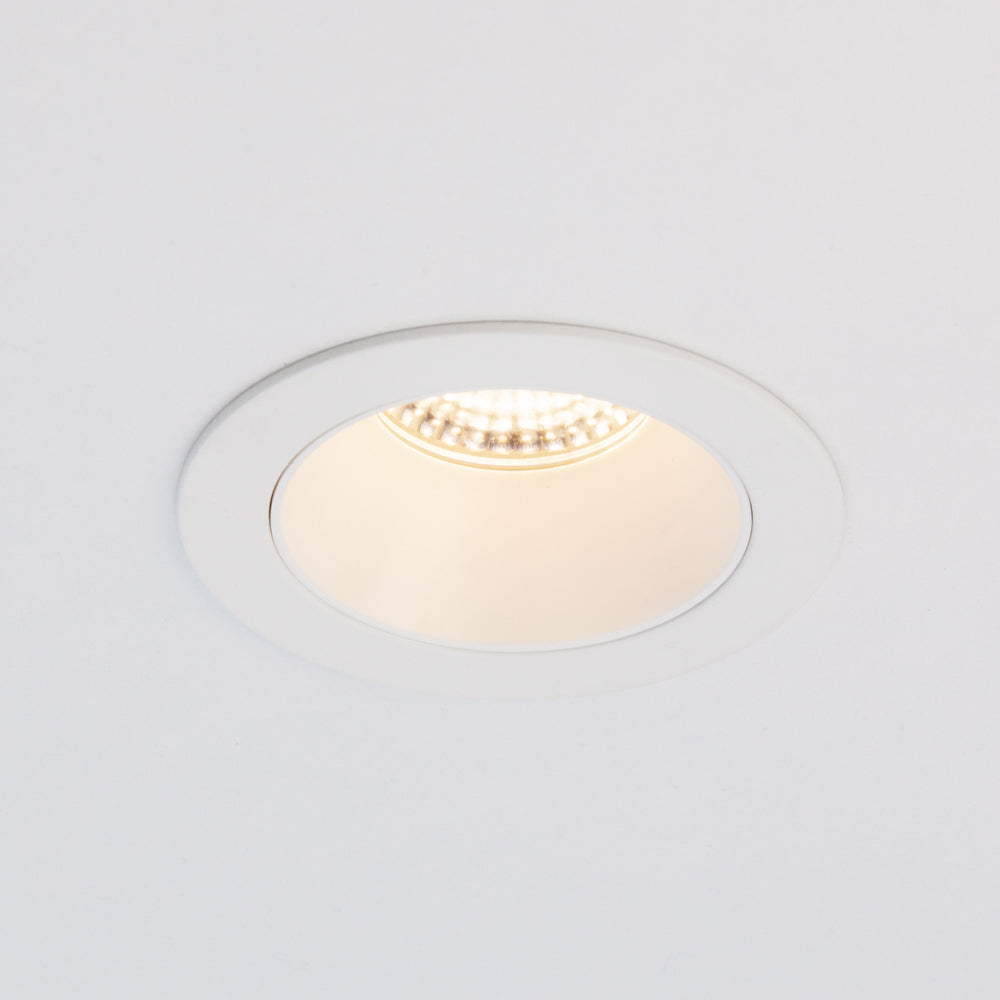

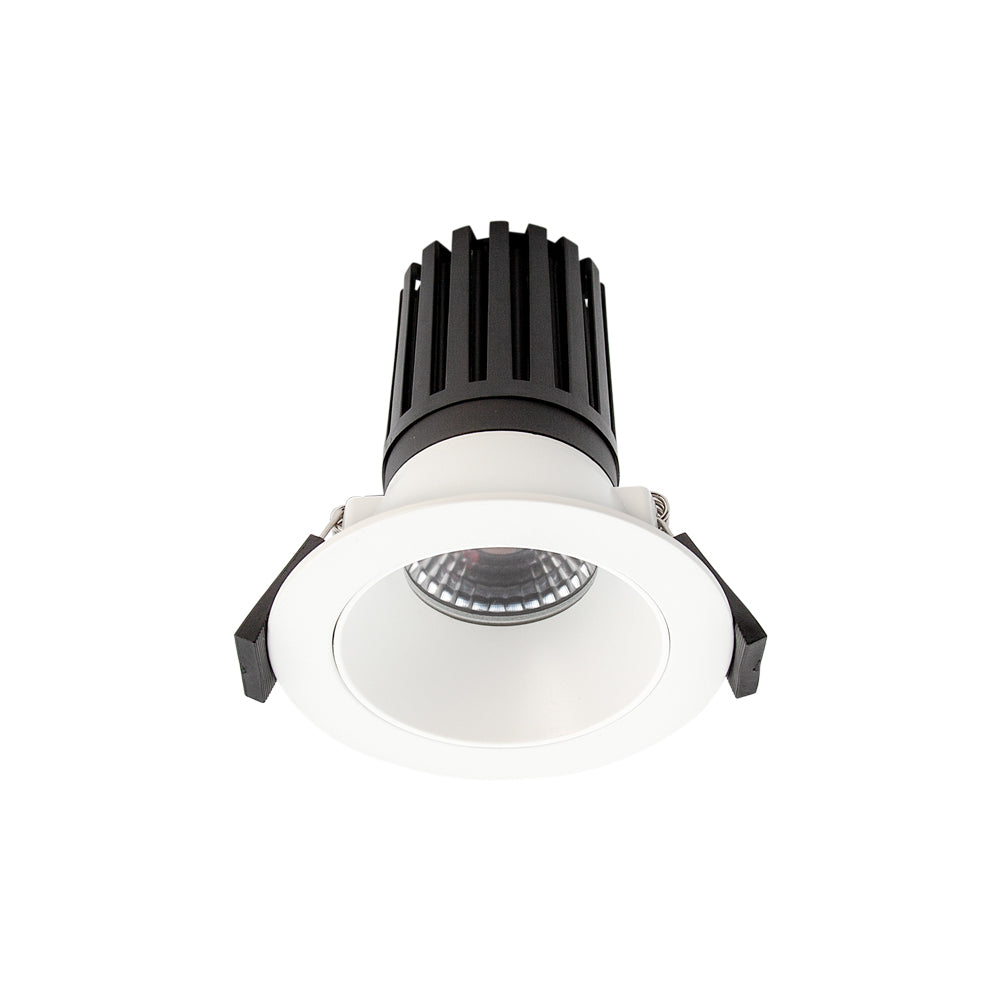

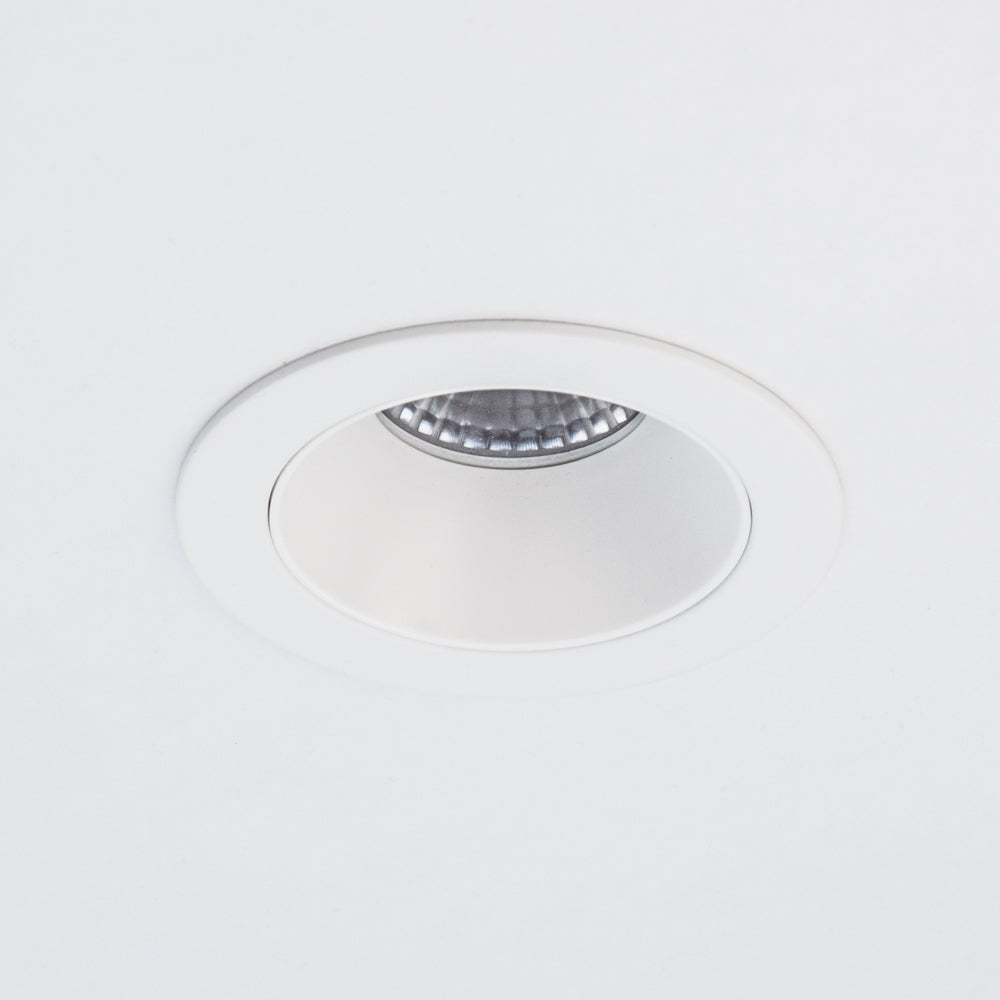

• Design Standard Small Downlight Kit by Halcyon in White
  • Design Standard Small Downlight Kit
  • Design Standard Small Downlight Kit
  • Design Standard Small Downlight Kit
1 4

Halcyon Lighting

Design Standard Small Downlight Kit by Halcyon

Design Standard Small Downlight Kit by Halcyon

$63.00
$63.00
Sale Sold out
Shipping calculated at checkout.
Finish: White
  • 72–82 mm cut-out
  • 900 lm
  • IP54
  • Dimmable

In stock, usually dispatched the next working day

Free delivery on orders over $499 to most NZ addresses. Delivery details

  • Authorised Halcyon Lighting stockist
  • NZ family business, delivering nationwide
Design Standard Small Downlight Kit by HalcyonWhite $63Price match promise
View full details

The details

A closer look

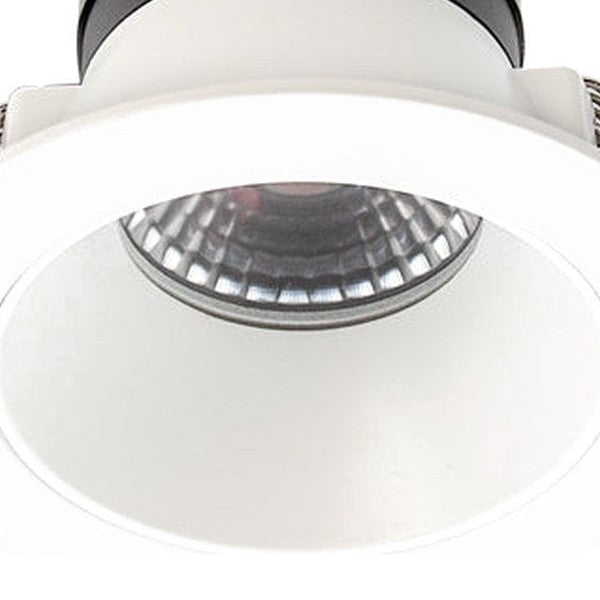

  • Deep reflector Deep reflector

    Sets the LED back from the ceiling, shown in white

  • Slim trim Slim trim

    A neat white ring on the ceiling

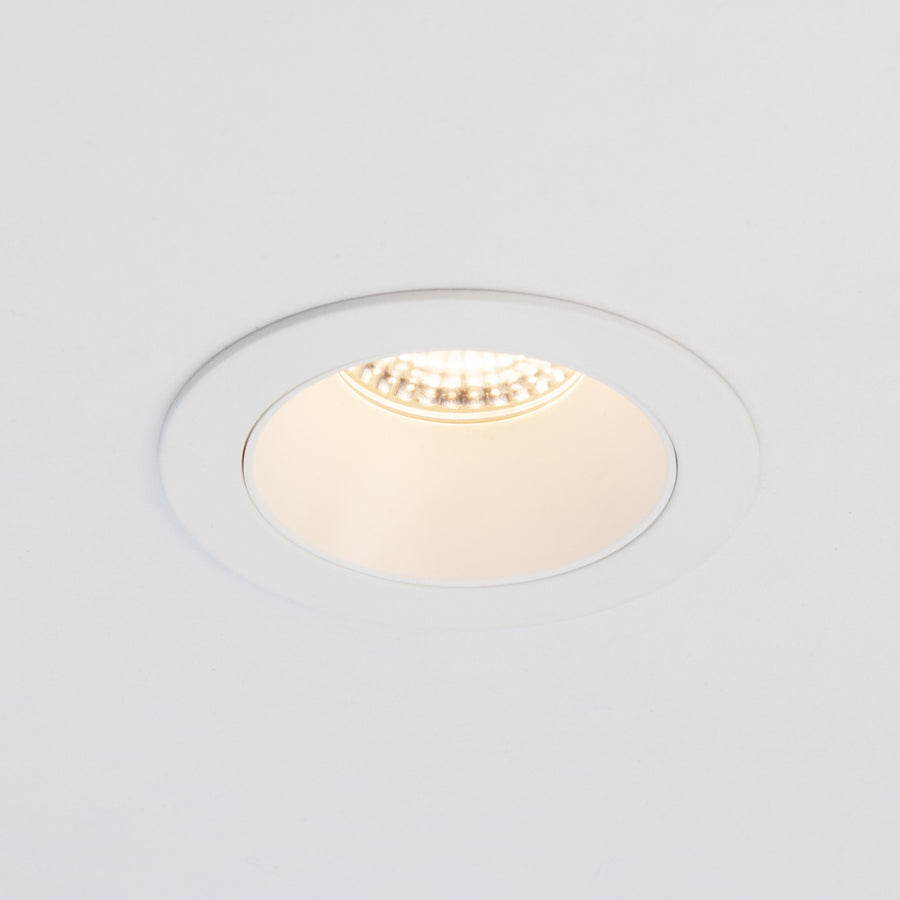

  • Warm white light Warm white light

    3000K, 900 lumens

Size and placement

Get the height right

Typical mounting heights. Your electrician will confirm the final position.

  • Spacing

    Space downlights about 1.2 to 1.5 m apart, and about 600 mm in from the walls.

Specifications
Diameter 93 mm
Height 104 mm
Cut-out 72–82 mm
Lamp Integrated LED, 9.5 W, 900 lm
Colour temperature 3000K (warm white)
CRI 90
Beam angle 50°
Lifespan 60,000 hours (L80 B30)
Dimming Dimmable and flicker-free, driver included
Insulation IC-F / IC-4
Material Aluminium and polycarbonate
Finishes White or black
Rating IP54
Electrical Class II
Overview

This Design Standard Small Downlight Kit is a high-quality lighting solution, featuring a warm white colour temperature and a lifespan of 60,000 hours. It has a diameter of 93mm and a height of 104mm, making it suitable for retrofit applications. The kit includes a driver and is dimmable, with a 5-year warranty for added peace of mind.

Watts 9.5W
Cut Out 72-82mm
Diameter 93mm
Height 104mm
Colour Temp 3000K Warm White
Lumens 900lm
CRI 90
Lifespan 60,000hrs (L80 B30)
Beam Angle 50°
Binning SDCM 3
Finish White
Black
Material Aluminium, PC
Ingress Protection IP54
Classification IC-F / IC-4
Driver Included / Incorporated Driver Included
Dimming / Control Dimmable
Driver Output Current 230mA
Electrical Class Class II
TLAs Flicker-free, PstLM =1.0; SVM =0.4
Delivery and installation

In-stock showroom items are usually dispatched the next working day. Warehouse items are dispatched within 5 to 10 working days. Delivery is free on orders over $499 to most New Zealand addresses; oversized items are charged at our oversized rate. Shipping policy

Hardwired lights must be installed by a licensed electrician.

Uses

Where it works best

  1. 01
    Kitchens and living areas

    900 lumens of warm white light, with a CRI of 90.

  2. 02
    Replacing old downlights

    The 72 to 82 mm cut-out suits most existing holes.

  3. 03
    Bathrooms

    It's IP54 rated, for damp areas like bathrooms.

Good to know

Questions customers ask

Quick answers before you buy.

Will you match a lower price?

Yes. If another authorised New Zealand retailer advertises the same product, in the same finish, for less, send us the link before you order and we will match it. The details are on our price match promise page.

Halcyon Lighting

About the brand

Halcyon Lighting

Halcyon is a New Zealand lighting company known for practical, well-engineered LED downlights. We stock Halcyon downlight kits, including tilting and smart options, surface-mounted downlights and Halcyon wall and exterior lights. See all downlights, or pair Halcyon downlights with feature pendants and wall lights.

Shop all Halcyon Lighting →
