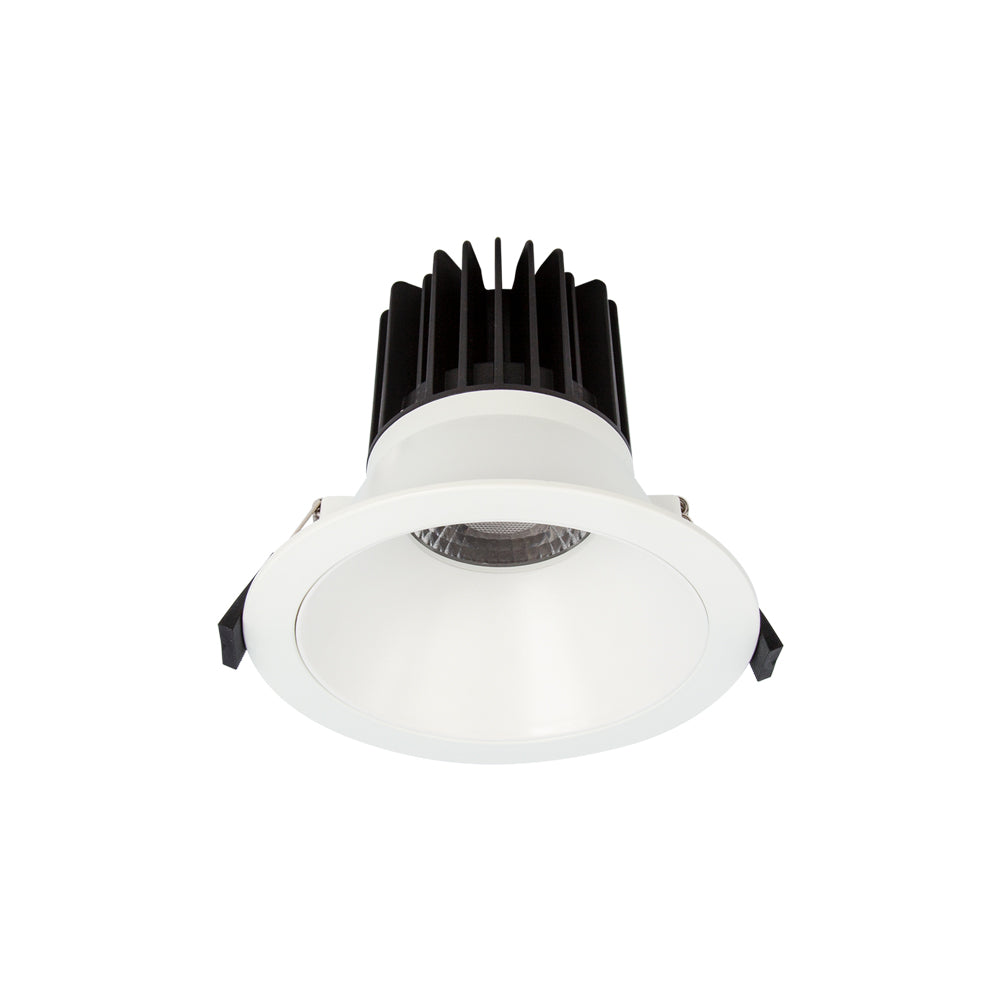

Design Standard Large Downlight Kit - Triple Wattage by Halcyon
Design Standard Large Downlight Kit - Triple Wattage by Halcyon
- IP54
In stock, dispatched within 5 to 10 working days
Free delivery on orders over $499 to most NZ addresses. Delivery details
Couldn't load pickup availability
- Authorised Halcyon Lighting stockist
- NZ family business, delivering nationwide
Design Standard Large Downlight Kit - Triple Wattage by HalcyonWhite
$104Price match promise
Size and placement
Get the height right
Typical mounting heights. Your electrician will confirm the final position.
-
Spacing
Space downlights about 1.2 to 1.5 m apart, and about 600 mm in from the walls.
Specifications
| Diameter | 150 mm |
|---|---|
| Height | 130 mm |
| Rating | IP54 |
Overview
The Design Standard Large Downlight Kit is a high-quality lighting solution with selectable 11W, 15W, and 19W options. It features a warm white colour temperature and a long lifespan of 60,000 hours. The kit is also dimmable and comes with a 5-year warranty. With its adjustable output and pre-wired design, this downlight kit is perfect for Retrofit Applications.
| Watts | 11W, 15W, 19W |
| Cut Out | 130-140mm |
| Diameter | 150mm |
| Height | 130mm |
| Colour Temp | 3000K Warm White |
| Lumens | <1850lm |
| CRI | 90 |
| Lifespan | 60,000hrs (L80) |
| Beam Angle | 60° |
| Binning | SDCM 3 |
| Input | 240V |
| Finish | White Black |
| Material | Aluminium, PC, PMMA |
| RAL Colour | RAL9016 |
| Ingress Protection | IP54 |
| Classification | IC-F / IC-4 |
| Driver Included / Incorporated | Driver Included |
| Dimming / Control | Dimmable |
| Electrical Class | Class II |
| TLAs | Flicker-free, PstLM =1.0; SVM =0.4 |
| Features | Adjustable Output Under Insulation Dimmable Driver, pre-wired |
| Warranty | 5 Year Warranty |
Delivery and installation
In-stock showroom items are usually dispatched the next working day. Warehouse items are dispatched within 5 to 10 working days. Delivery is free on orders over $499 to most New Zealand addresses; oversized items are charged at our oversized rate. Shipping policy
Hardwired lights must be installed by a licensed electrician.
Good to know
Questions customers ask
Quick answers before you buy.
Will you match a lower price?
Yes. If another authorised New Zealand retailer advertises the same product, in the same finish, for less, send us the link before you order and we will match it. The details are on our price match promise page.
About the brand
Halcyon Lighting
Halcyon is a New Zealand lighting company known for practical, well-engineered LED downlights. We stock Halcyon downlight kits, including tilting and smart options, surface-mounted downlights and Halcyon wall and exterior lights. See all downlights, or pair Halcyon downlights with feature pendants and wall lights.
