Design Standard Large Downlight Kit - Quad Wattage Wide Beam by Halcyon
Design Standard Large Downlight Kit - Quad Wattage Wide Beam by Halcyon
- IP54
In stock, dispatched within 5 to 10 working days
Free delivery on orders over $499 to most NZ addresses. Delivery details
Couldn't load pickup availability
- Authorised Halcyon Lighting stockist
- NZ family business, delivering nationwide
Design Standard Large Downlight Kit - Quad Wattage Wide Beam by HalcyonBlack
$104Price match promise
Size and placement
Get the height right
Typical mounting heights. Your electrician will confirm the final position.
-
Spacing
Space downlights about 1.2 to 1.5 m apart, and about 600 mm in from the walls.
Specifications
| Diameter | 150 mm |
|---|---|
| Height | 130 mm |
| Rating | IP54 |
Overview

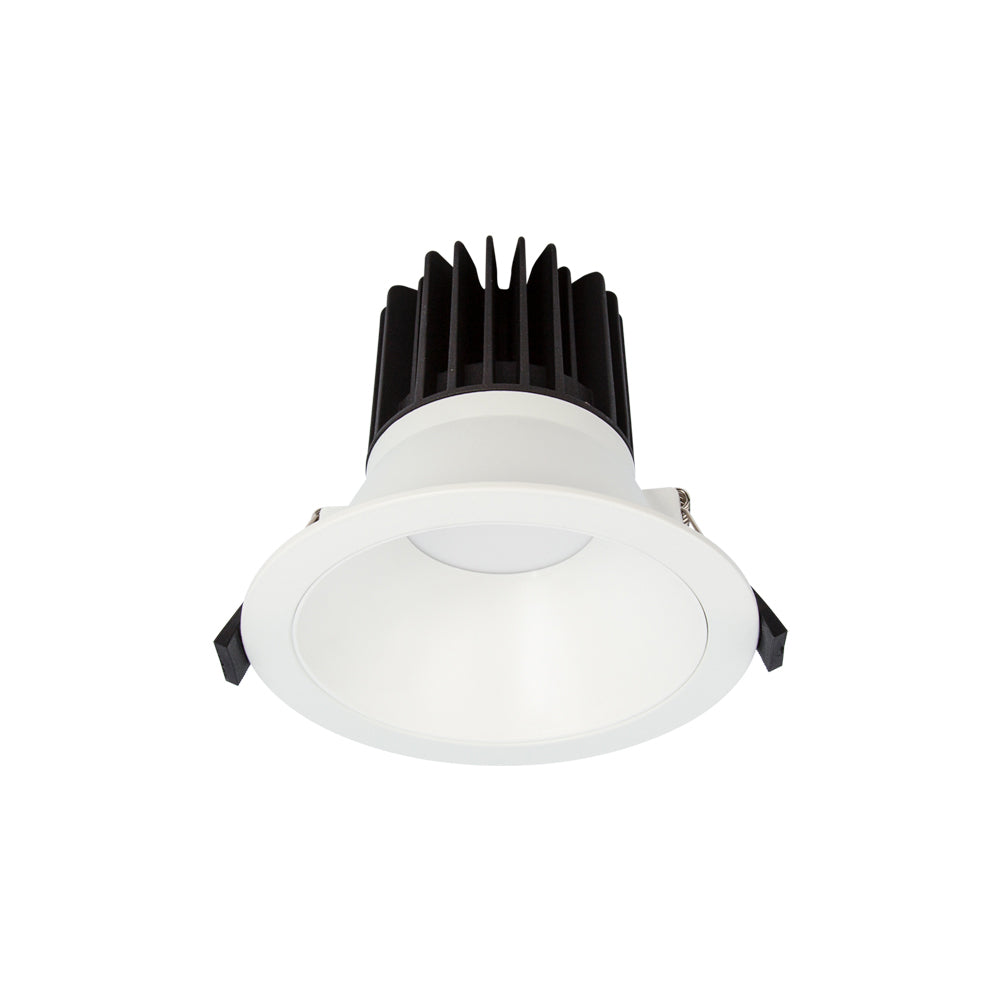

The Design Standard Large Downlight Kit is a high-quality lighting solution that offers a quad wattage option and a wide beam angle. With a warm white colour temperature and a lifespan of 60,000 hours, this downlight kit is perfect for a variety of applications. It features a dimmable driver and is flicker-free, making it a great choice for those looking for a reliable and energy-efficient lighting option.
| Watts | Selectable 8.5W, 11W, 14.5W, 19W |
| Cut Out | 130-140mm |
| Diameter | 150mm |
| Height | 130mm |
| Colour Temp | 3000K Warm White |
| Lumens | <1700lm |
| CRI | 90 |
| Lifespan | 60,000hrs (L80) |
| Beam Angle | 90° |
| Binning | SDCM 3 |
| Input | 240V |
| Finish | White Black |
| Material | Aluminium, PC |
| RAL Colour | RAL9016 |
| Ingress Protection | IP54 |
| Classification | IC-F / IC-4 |
| Driver Included / Incorporated | Driver Included |
| Dimming / Control | Dimmable |
| Electrical Class | Class II |
| TLAs | Flicker-free, PstLM =1.0; SVM =0.4 |
Delivery and installation
In-stock showroom items are usually dispatched the next working day. Warehouse items are dispatched within 5 to 10 working days. Delivery is free on orders over $499 to most New Zealand addresses; oversized items are charged at our oversized rate. Shipping policy
Hardwired lights must be installed by a licensed electrician.
